TAS 組合式選粉機
結構特點
TAS 組合式選粉機為我公司近年開發并推廣的產品，與輥壓機配合使用，可用于新建或改造的生料磨、水泥磨、礦渣（鋼渣）磨等系統。該機型將高效動態選粉機與 V 型靜態選粉機組合為一體，結構緊湊、運行空氣阻力低，能有效降低系統電耗。
●動靜態一體設計，降低土建高度和沿程阻力損失；
Combination of the static and dynamic separator – lower total height and lower pressure drop.
●靜態部分更扁平、動態部分出風口擴容、整機 CFD 流場優化，局部阻力損失更低；
Static separator is more flat, enlarged air outlet of dynamic separator, Optimized flow field with CFD – lower pressure drop.
●組合式密封、后傾轉子葉片、可調導流葉片，調節更靈活、選粉效率高；
Combined sealing, back inclined rotor blade, adjustable guide vane - high separating efficiency.
●動態部分粗粉返回靜態部分并設計調節裝置，控制內循環、提高二次分選能力；
Between danamic and static separator, adjustment device is equipped to control the internal circulation, thus improve the secondary
sorting ability.
●設備阻力：~3500Pa，比傳統動態選粉機加 V 型選粉機低 500~700Pa，電耗更低；
Equipment pressure drop:~3500Pa, 500~700Pa less than original dynamic separator and V- separator.
●選粉效率：>90%，比傳統動態選粉機加 V 型選粉機高 5-10%，產量更高；
Separating efficiency>90%, 5~10% more than original dynamic separator and V- separator and larger production capacity.
●建造成本：扁平化設計，土建高度比傳統動態選粉機加 V 型選粉機低 5~8m，建造成本更低。
Construction cost: Compact design, the height of the system is 5~8m lower than the traditional dynamic separator and V- separator
design, thus lower the construction cost.

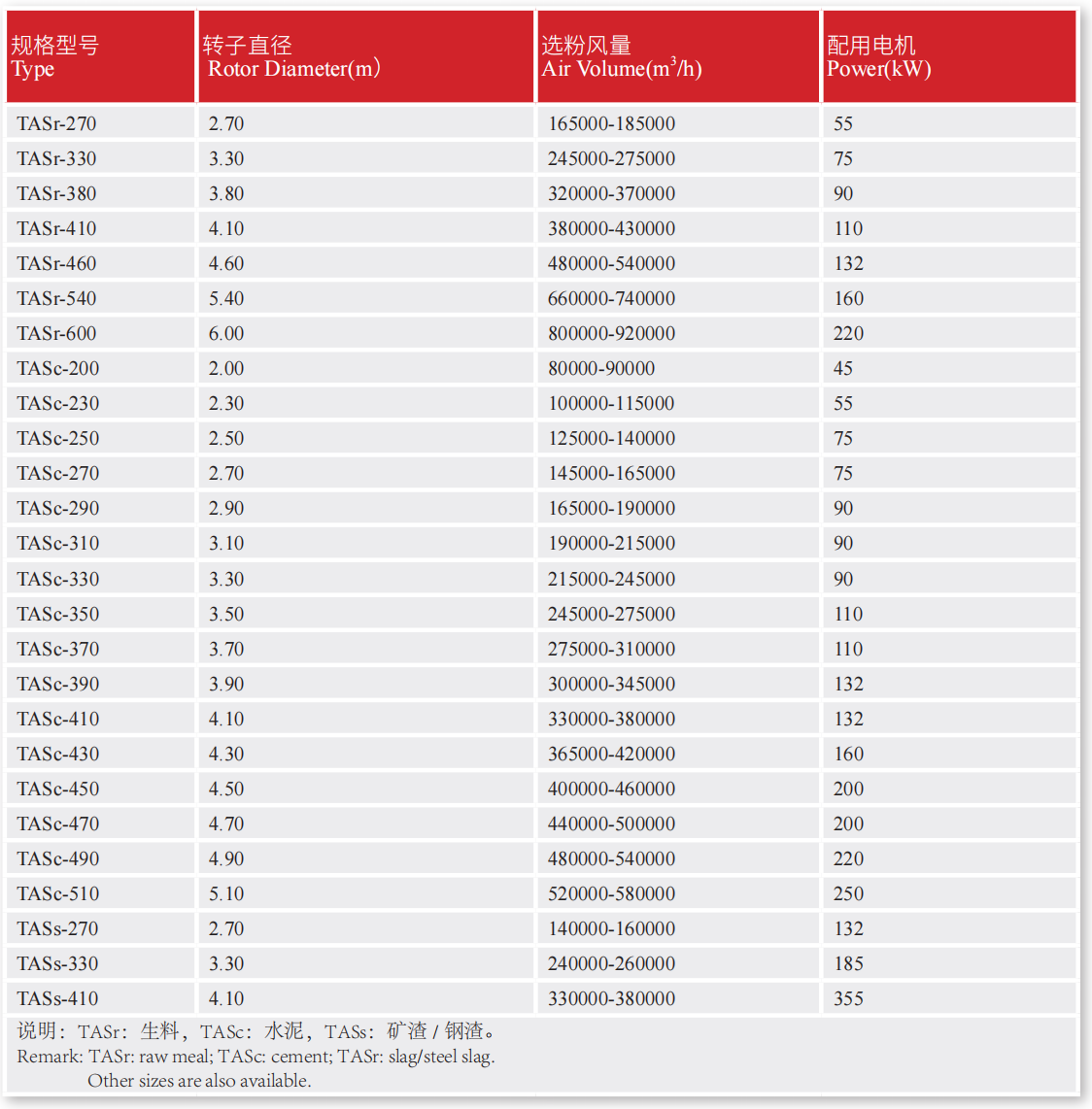

組合選粉機型號及參數
